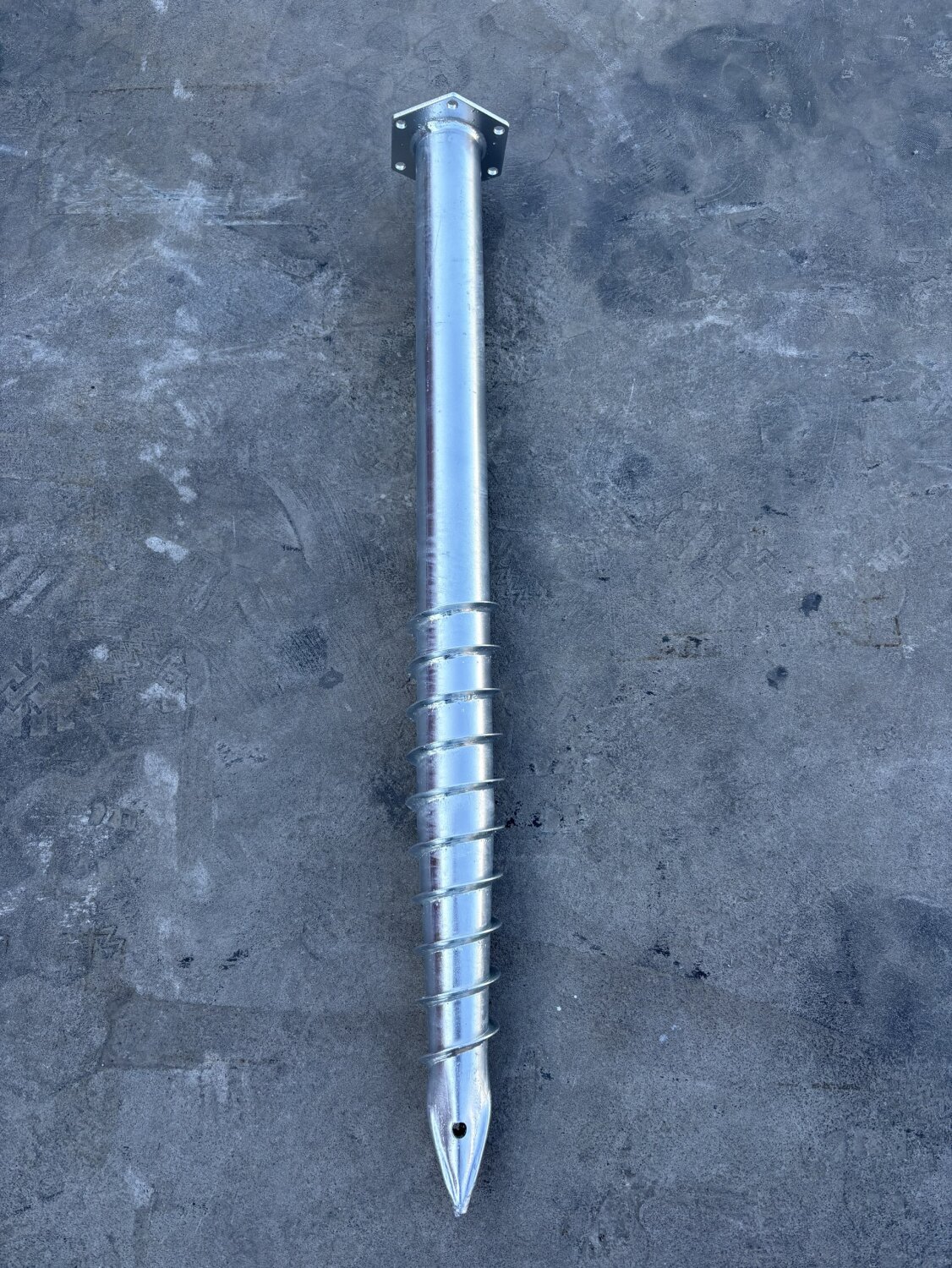

Screw pile F68 x 1000 x 2.0-120 x 5
Hot-dip galvanised screw pile with a 68 mm diameter and 1000 mm length, designed for foundations of lightweight and moderately loaded structures. The 120 mm blade ensures stable anchoring in the ground, while the M-type flange head allows for easy fixing of structural elements. Load-bearing capacity up to 1683 kg, suitable for terraces, shelters, saunas, and other constructions. Installation without concrete.
19,36€
Technical parameters
| Lapel thickness (mm) | 5 |
|---|---|
| Lapel type | M |
| Diameter | 68 mm |
| Length | 1000 mm |
| Metal thickness | 2,0 mm |
| Thread length (mm) | 400 |
| Weight | 8.2 kg |
| Coating | Hot-dip galvanised |
| Load-bearing capacity* | up to 1683 kg |
*The indicated load-bearing values are approximate and calculated for medium-density (moderately firm) soil conditions. The actual load-bearing capacity of screw piles may vary depending on soil composition, moisture, depth of layers, and installation quality. The exact load-bearing capacity for each project is determined through an individual assessment and data obtained during install
Use the calculator to estimate the approximate number of screw piles for your project based on the dimensions of the site.
